Vehicle set M SPRINT (GO/DRIVE/ZONE/SPEED)
Vehicle set M SPRINT (GO/DRIVE/ZONE/SPEED)
Couldn't load pickup availability
Description
Description
Volume discounts on end customer prices are possible for individual projects. Please contact us personally.
This set enables the use of all ELOshield functions such as GO (personal protection), DRIVE (vehicle collision protection), ZONE (speed reduction in defined areas) and SPEED (indoor/outdoor speed control). Two antennas can be used to create freely configurable zones around the vehicle, while the third antenna detects other vehicles or stationary zones in the warehouse. Drivers are warned visually and acoustically via the ELObox. Speed reductions or a lifting stop can also be implemented if the vehicle is equipped accordingly.
Important features
Important features
The set is suitable for vehicles up to 5 tons.
Technical data
Technical data
Dimensions: 85 x 58 x 35 mm
- Protection class: IP 65
- Power supply: supplied via the visualization device
- Operating temperature: -25°C +60°C, non-condensing humidity below 95%
- Detection range: up to 15 metres, depending on application

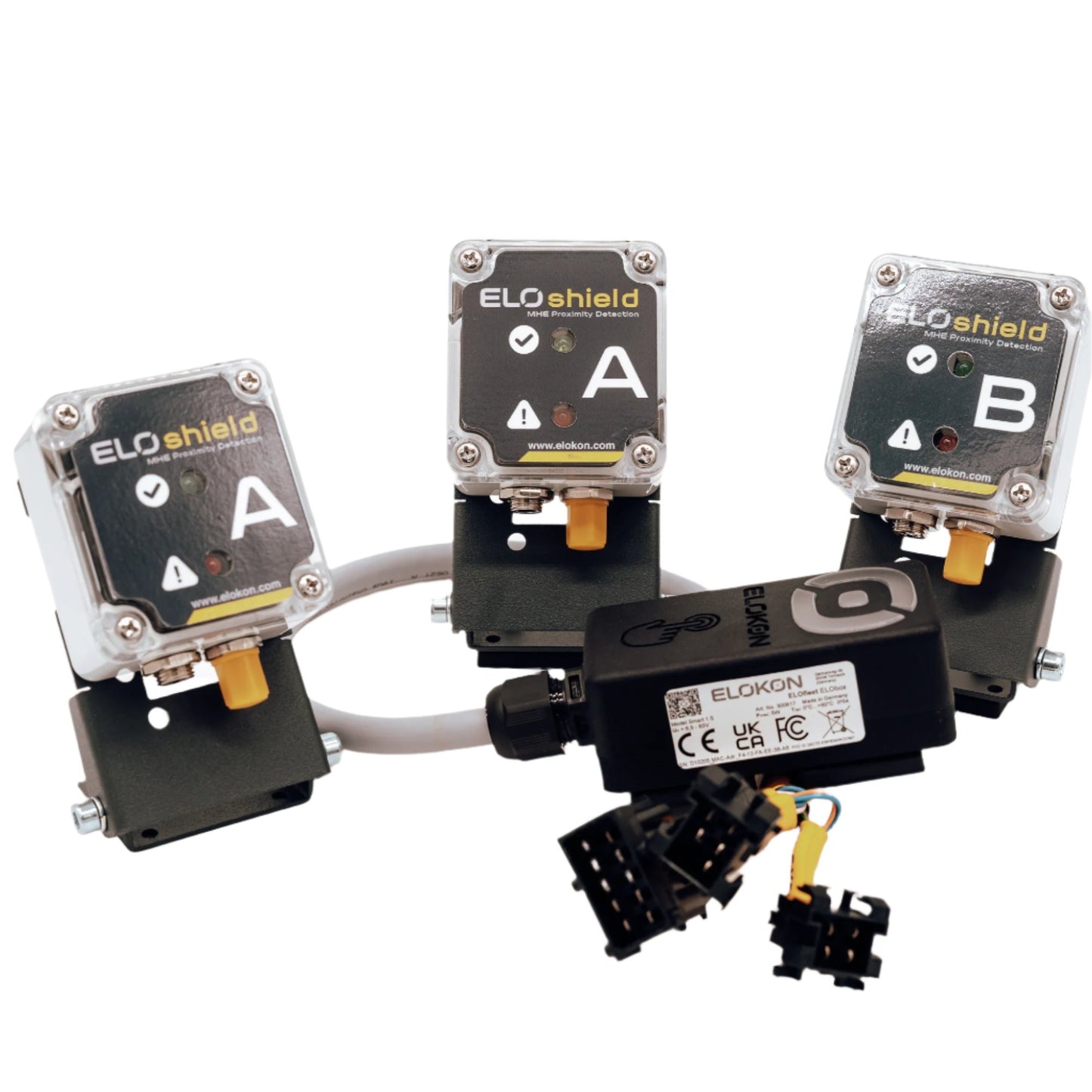

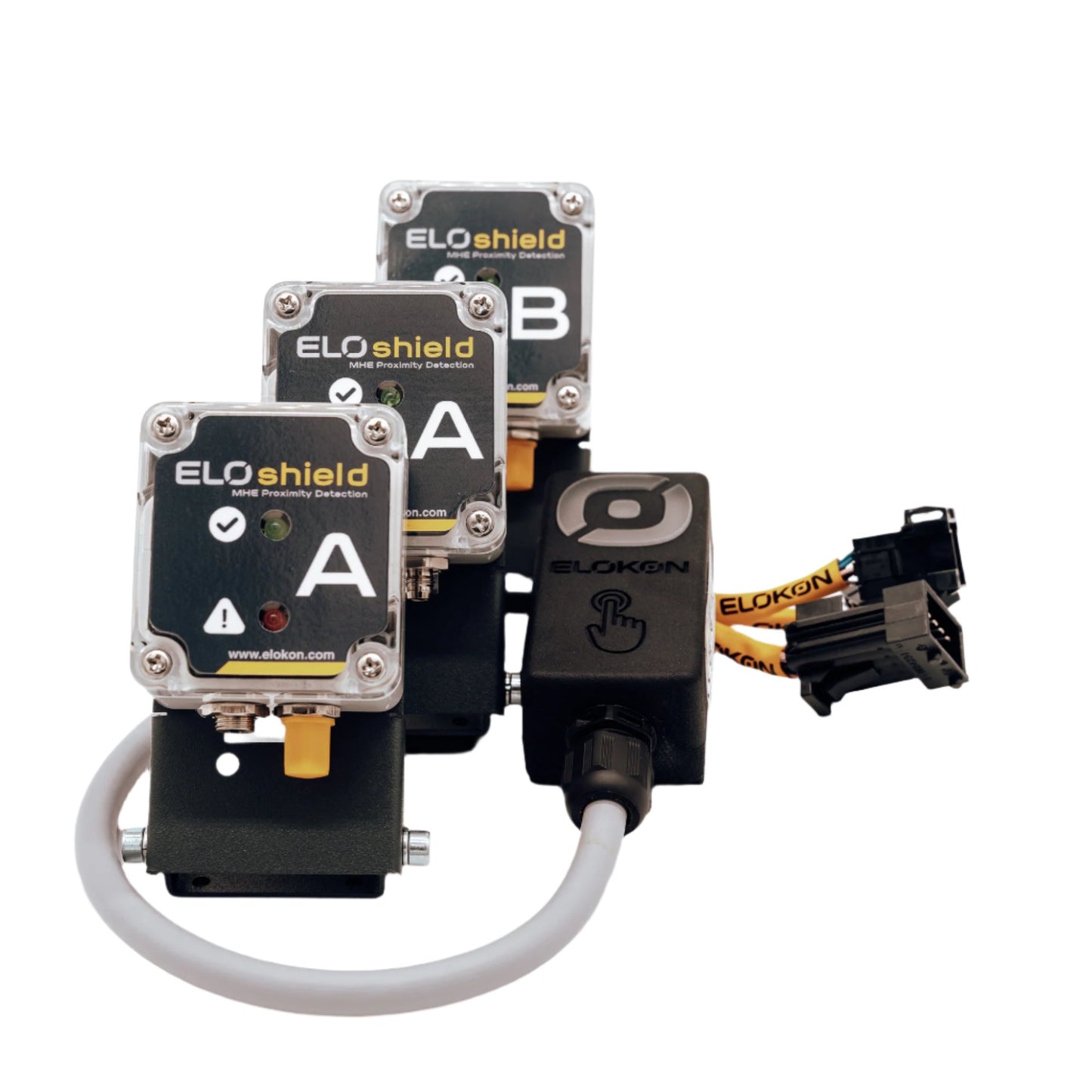

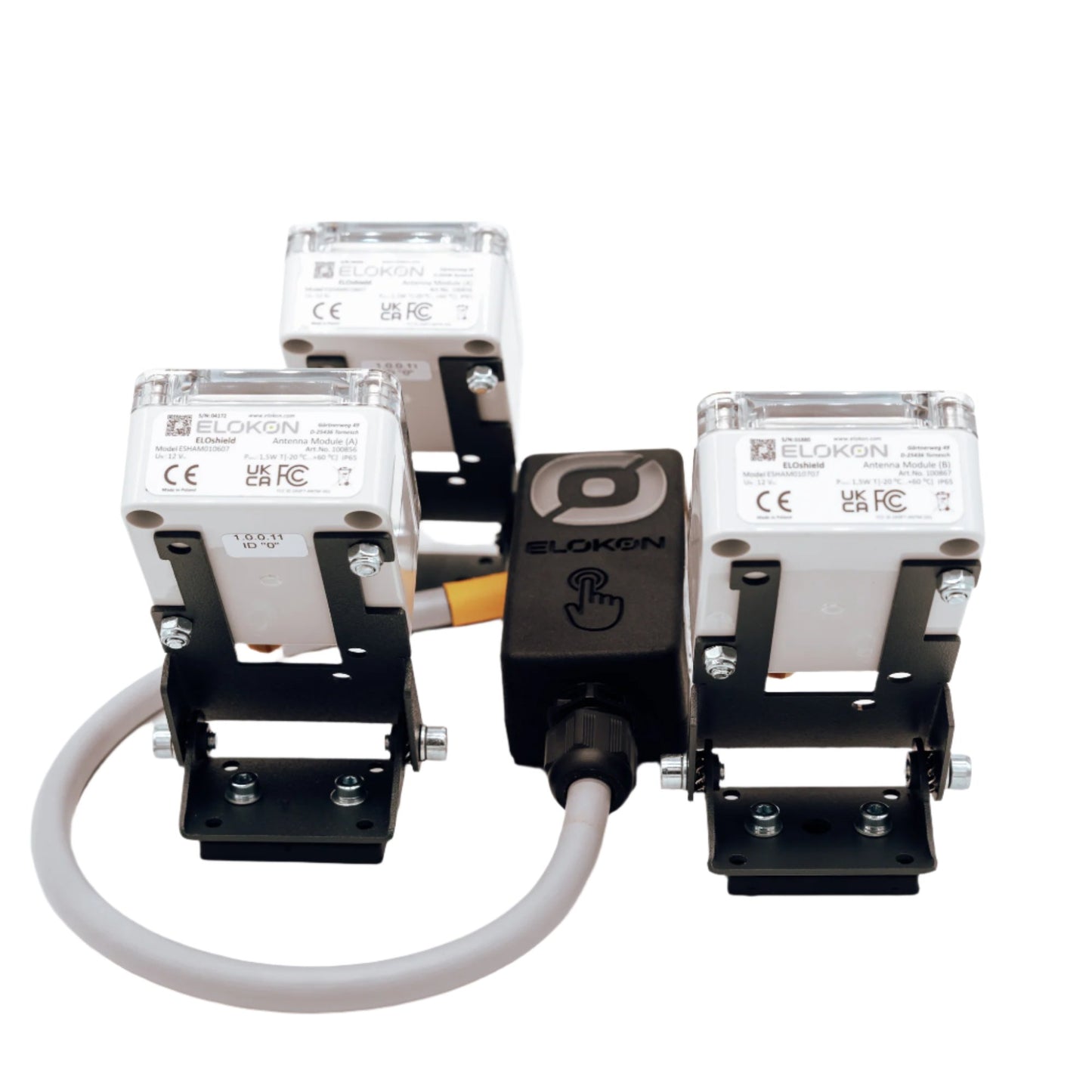

Scope of delivery
Scope of delivery

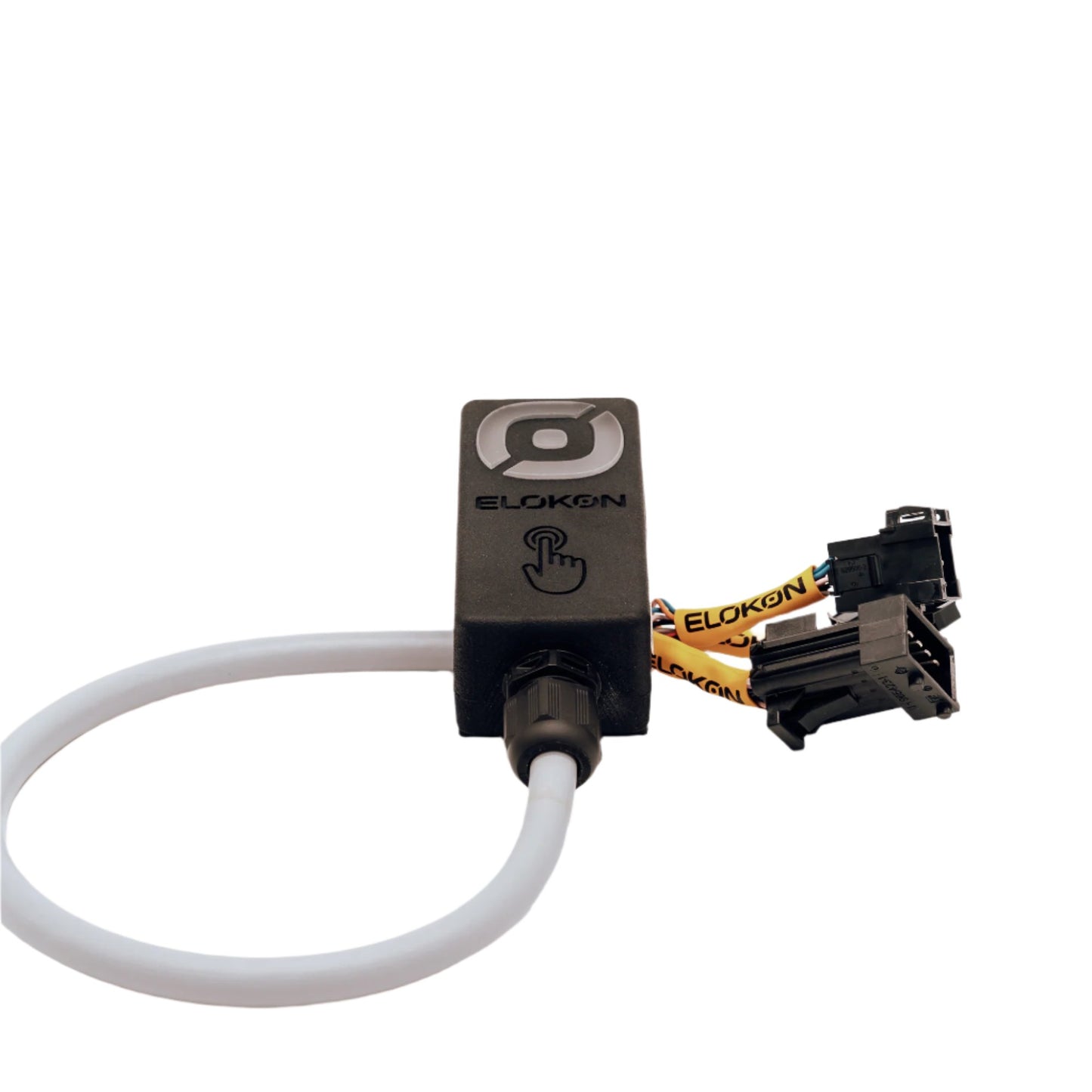

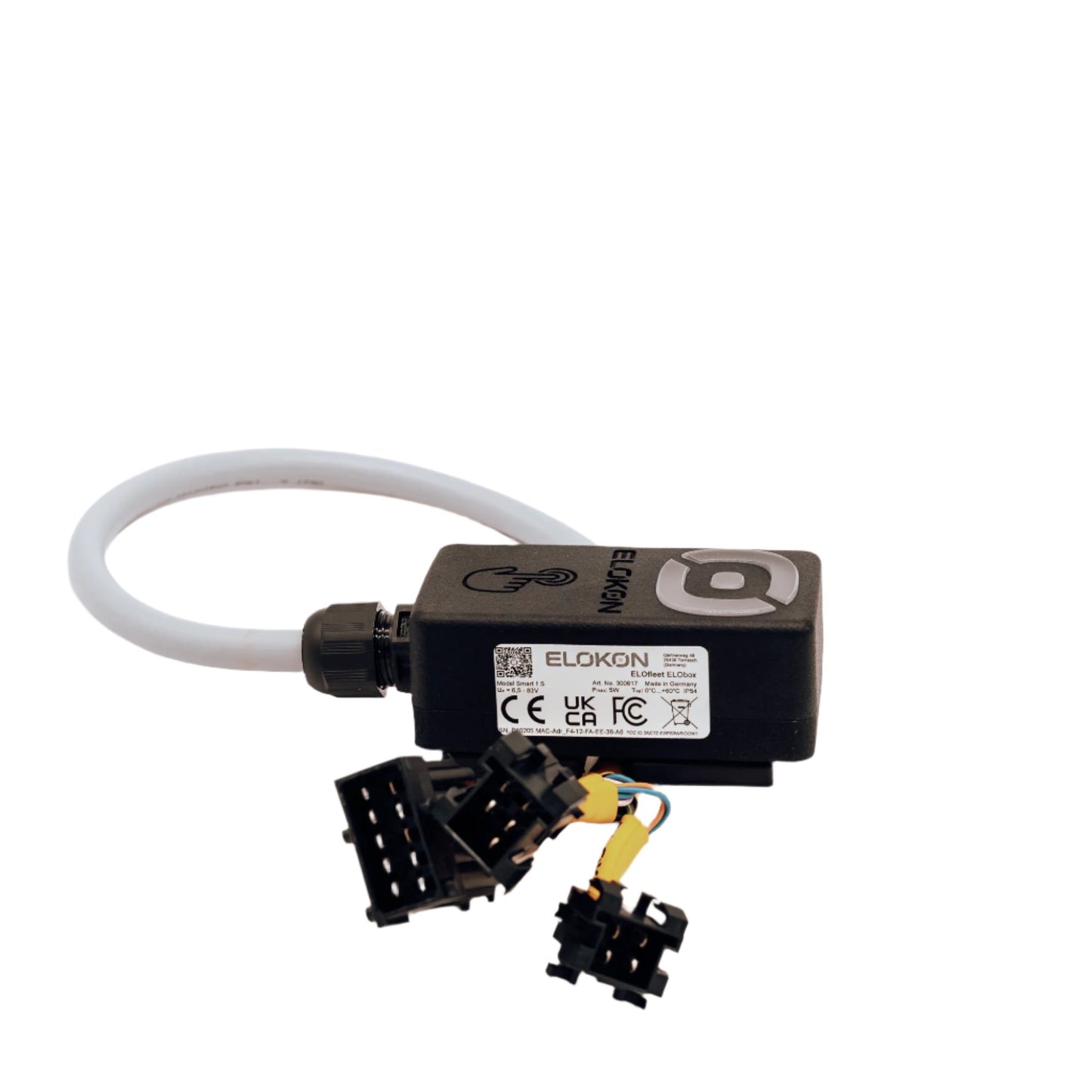

- ELObox Sprint
- 2x antenna A with mounting bracket
- Antenna B with mounting bracket

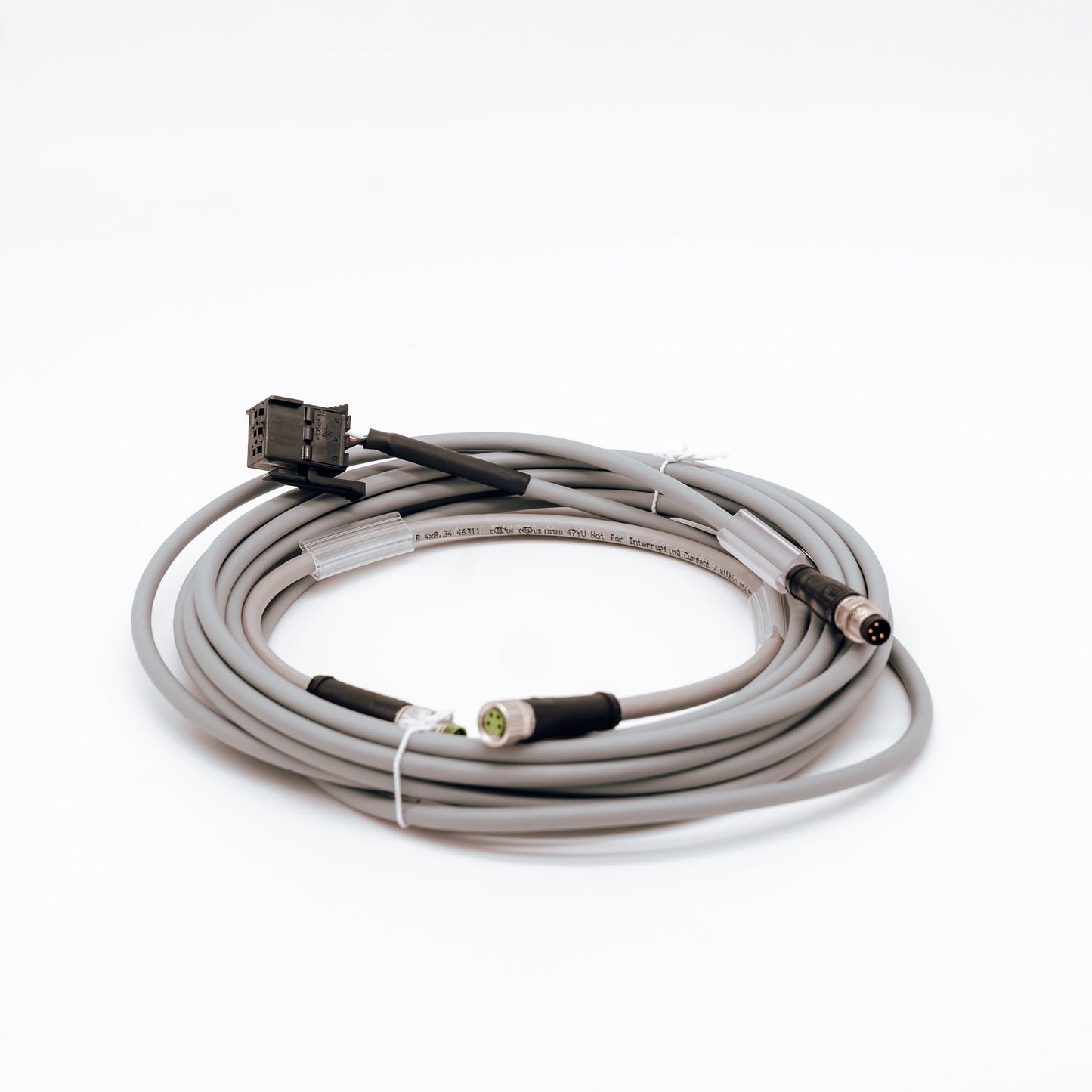

- Antenna cable X4
- Antenna cable
- Mounting material
Item number
Item number
300957
